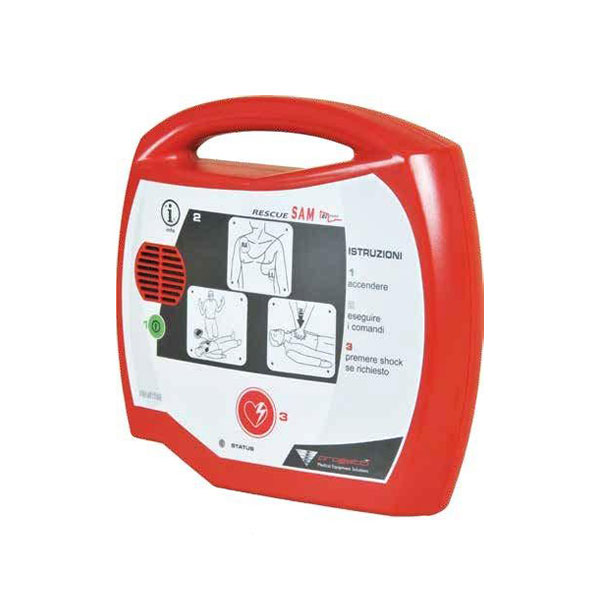

RESCUE SAM is a semi-automatic external defibrillator designed for providing simple and direct voice prompts and indications for a straightforward rescue operation. It is lightweight and battery powered for maximum portability. RESCUE SAM is designed to treat Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia (VT).

OPERATING MODE: semi-automatic

WAVEFORM: BTE (biphasic truncated exponential type); impedance compensated ENERGY: 200J fixed as new norms

ERC 2015 – adult: nominal 200 J into a 50 Ω load – infant/children: less than 50J using optional attenuated pediatric pads

SHOCK ENERGY ACCURACY: According to IEC EN60601-2-4 PROTOCOL: voice prompts and indicators guide user through protocol PACEMAKER: detection and rejection

CHARGE CONTROL: automatic by software (arrhythmia detection system and charging control), Analysis time: about 6 seconds

CHARGE TIME FROM “SHOCK ADVISED”: <6 seconds, typical with new battery

VOICE INSTRUCTIONS: detailed voice messages guide responder through use of the defibrillator

CONTROLS: shock button, info-button, On/Off button

INDICATORS: LEDs (different colors), info-button

CHARGE COMPLETE INDICATOR: – Voice prompts (press the shock red button) – Flashing red shock button

DISARM: once charged, the RESCUE SAM disarms if: – The SHOCK button is not pressed within 15 seconds after being armed, or – The Power ON/OFF button is pressed to turn OFF, or – The defibrillator pads are removed from the patient or the pads connector is disconnected

SHOCK DELIVERY: shock is delivered if the SHOCK button is pressed while the defibrillator is armed

SHOCK DELIVERY VECTOR: via adult defibrillator pads in the anterior-anterior (Lead II) position or via reduced-energy pediatric pads in the anterior-posterior position

PATIENT ISOLATION: type BF BATTERY: 12 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life

BATTERY CAPACITY: min.200 shocks or 4 hours of operating time continuous.

AUTOMATED AND USER-ACTIVATED SELF-TESTS: – Daily Self-tests: tests internal circuitry, waveform delivery system, battery capacity, and software. – Battery Insertion Test: upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness.

DATA RECORDING AND TRANSMISSION: – Dedicated interface to download data – Optional special battery pack for data transmission – Data stored: first 60 minutes of ECG and the entire incident’s events and analysis decision.

CLASS OF PROTECTION: IP 54 (dust/water)

SIZE: 80x300x270 mm

WEIGHT: 2.2 kg with battery pack installed.

Standard set: – main unit – disposable defib pads adult – disposable battery pack
