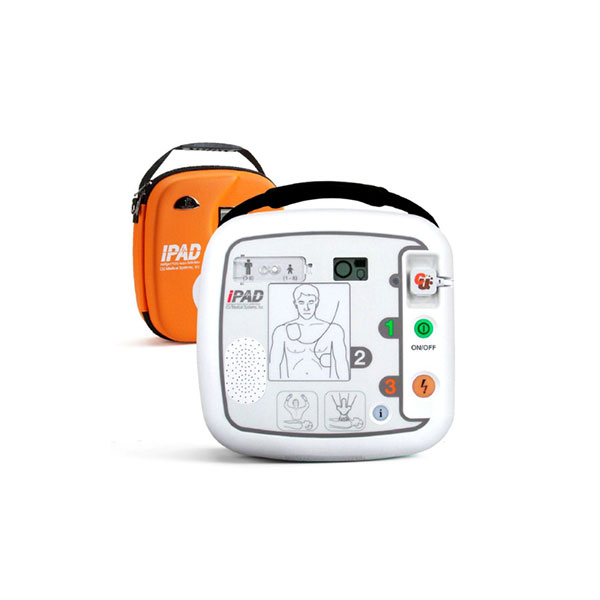

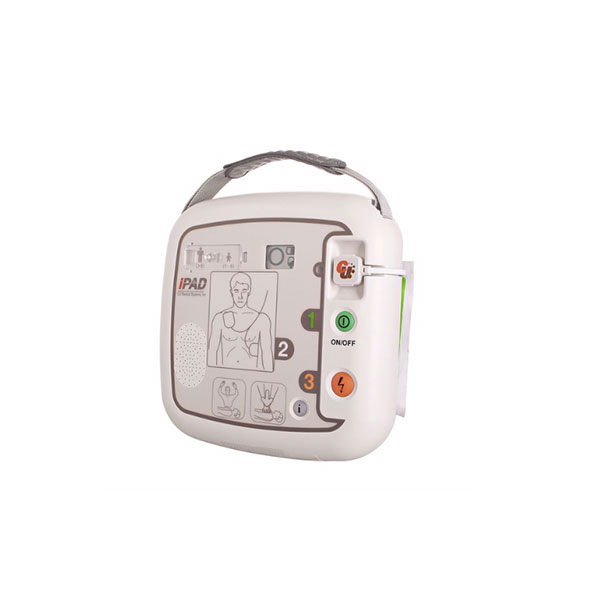

The i-PAD CU-SP1 is an automated external defibrillator (also known as an AED or PAD). The i-PAD CU-SP1 is designed for minimally trained individuals. It provides simple and direct voice prompts and instructions for straightforward rescue operation. It is lightweight and battery powered for maximum portability.

Key Features

• Easy and Simple Operation
• Efficient and effective e-cube Biphasic technology (BTE type)
• Lightweight and compact
• Pre-connected pads (one pair of pads for adults and chilidren)
• Easy communication with CU-EX1 software using IrDA or SD card (multi-event recording) -OPTIONAL
• Pads usage indication (Check and indicate the expiring date)
• Adjust volume automatically depending on the circumstances.
• Perfect for public facilities

TECHNICAL SPECIFICATIONS

DEFIBRILLATOR

• Standard Packgage Defibrillator, Pads, Battery, Manual
• Output Energy Adult-150Joules /
• Pediatric-50Joules (Common usage)
• Charging time

1. Charging time : Less than 8 seconds
2. Charging time after CPR finished : At least 8 seconds Charging time

Charging time : Less than 8 seconds

Charging time after CPR finished : At least 8 second

 USER INTERFACE

•  User support Detailed voice prompts and flashing Indicators
• CPR guidance Voice prompts for how to perform CPR for Adult and child patient
• Controls  On/Off button, I button, Shock button
• Indicator LCD display (Device status, Battery status, Pads status)
• Sensing Pads expiring date, Pads connection status
• CPR Monitoring
• Automatic Volume adjusting

ENVIRONMENT

•  Sealing Waterjet proof IPX5 per IEC60529 (IP55) Dust protected IP5X per IEC60529
• Temperature Operation/standby (0 – 40 )
• Vibration Meets MILSTD 810F

DATA RECORDING AND TRANSMISSION

•  IrDA port wireless transmission of event data to PC, SD Card (OPTIONAL)
• Internal Memory (Nand-flash) ECG, Event
• Storage capacity       Multi recording 5 events / Max 3 hours
• Data review PC Program CU-EX1

5) PATIENT ANALYSIS SYSTEM

• Patient Analysis Shockable Rhythms – Ventricular Fibrillation Ventricular Tachycardia
• Sensitivity/Specificity Meets AAMI DF80 Guideline

BATTERY

Standard

+ Type : DC 12 Volt 2.8 Ah, Lithium manganese dioxide

+ Capacity : Minimum 100shocks (150J )

High Capacity

+ Type : DC 12Volt 4.2Ah, Lithium manganese dioxide

+ Capacity : Minimum 200shocks (150J )

Lifespan

• 5 years (High capacity battery)
• (With the condition of the temperature of operation/ standby, standby mode after the first initial check)

Pads

• Common usage for adult and child
• Expiring date 30 months (from the date of manufacturing)
